KIRO Fill

Automated Compounding Device for Sterile Non-Hazardous Preparations

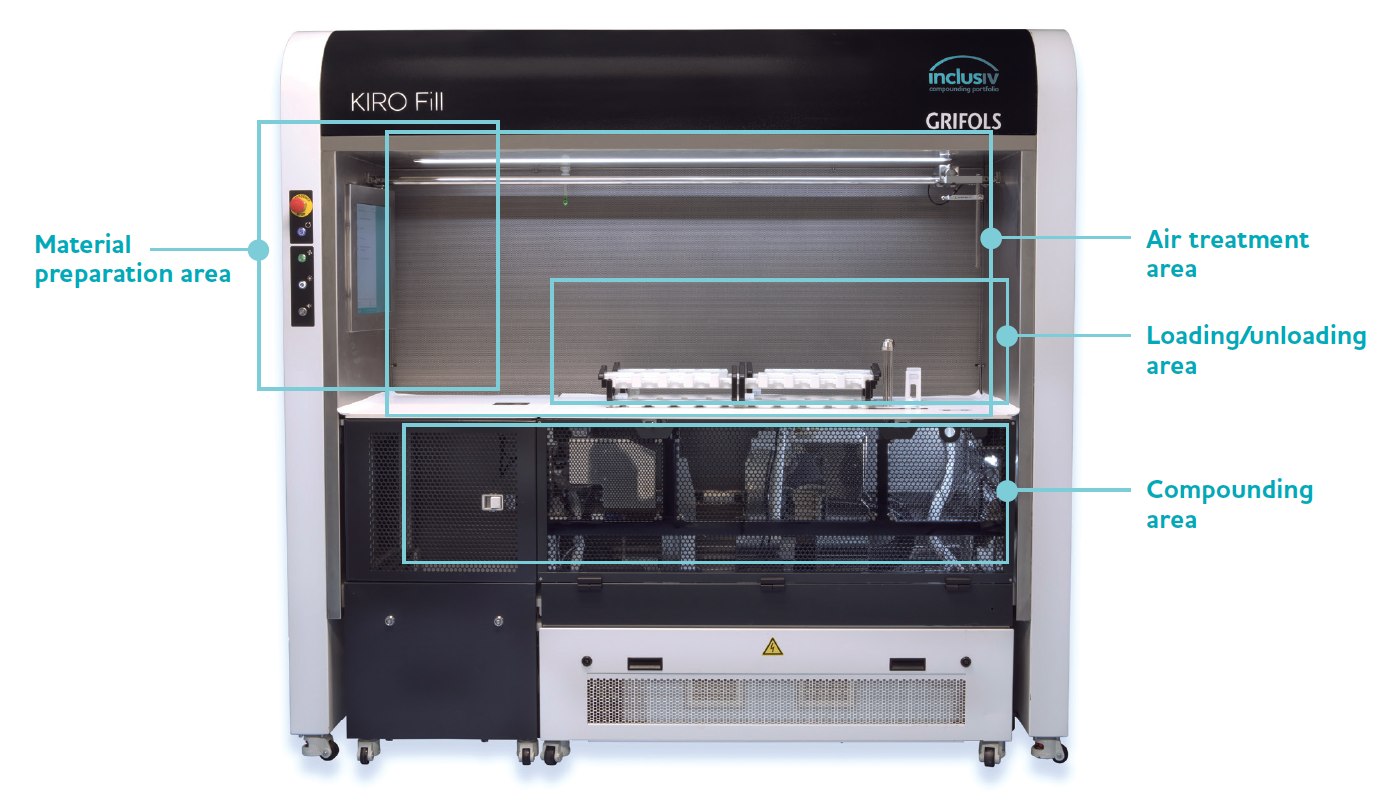

Features

Material Preparation and Identification Area

  • Touchscreen for user instructions and confirmations
  • Barcode/datamatrix and radio frequency identification (RFID) systems to identify and control source and final containers used

Loading/Unloading Area

  • Manual loading and unloading
  • Barcode scanning of raw materials
  • RFID technology for in process tracking
  • Up to 20 loading positions for final syringes (including 3 mL, 5 mL, 10 mL, 20 mL, 30 mL, and 60 mL)
  • Source bags and vials of different brands and sizes supported
  • LED-guided positioning

Compounding Area

  • Two automated units working in parallel handle transfer syringes to withdraw solutions from source containers and fill syringes via luer lock connections
  • Automatic capping of syringes with tamper-evident caps
  • Control of used source containers and drug leftovers

Air Treatment Area

  • ISO 5 aseptic environment in material preparation, loading, and unloading areas and in lower compounding area
  • Horizontal air flow with high efficiency particulate air (HEPA) H14 filters
  • Continuous monitoring of:
    – Air flow operation
    – Non-viable particle counts
    – Temperature

WATCH THE VIDEO FOR MORE INFORMATION.

KIRO Fill Key Benefits

self_cleaning

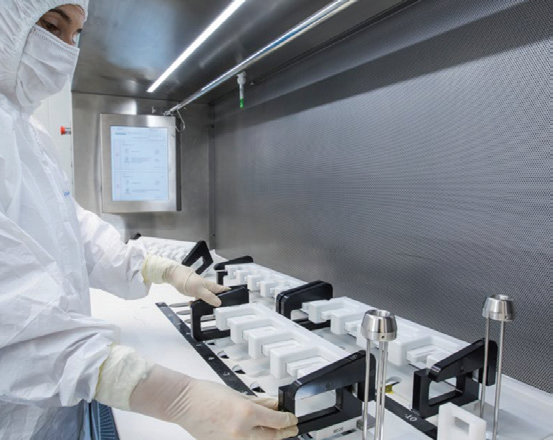

Safety

  • ISO 5 aseptic compounding environment protects sterility during production of non-hazardous compounded sterile preparations
  • Automation minimizes risk of contamination and increases dosing accuracy
  • Repetitive stress and needle-stick injuries are mitigated
  • Guided and software-controlled manual loading and unloading of supplies for enhance patient safety

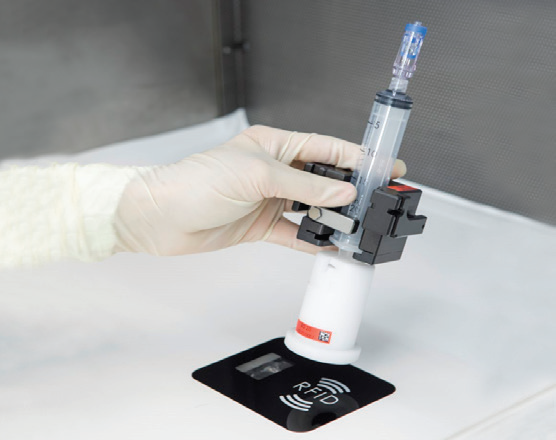

Control and Traceability

  • Loading and automated compounding processes are controlled by means of barcode scanning and RFID identification
  • Batch reports and labels for the compounded preparations generated to ensure traceability through production
compounding_area

compatible_disposables

Flexibility and Efficiency

  • Unique design and small footprint facilitate high throughput and optimization of workload, workflow, and staff time while consuming minimal valuable cleanroom space
  • Integrates two automated units working in parallel
  • Accomodation of a large variety of sizes and types of source and final containers
  • Batch compounded sterile preparations
  • Optimized the use of medication and left-overs
Are you interested in KIRO Fill?
CONTACT US

Regulatory Compliance

  • Compliance with USP and GMP regulations supported by standardizing aseptic procedures, facilitating personnel and process qualification
  • Airflow operation, temperature control to meet GMP requirements
  • Fully serviced during deployment, qualification, and periodic maintenance, including dosing accuracy tests and airflow certifications addressing smoke tests under dynamic conditions for USP <797> compliance
  • KIRO Fill meets electrical safety requirements by being UL listing marked per IEC61010 and EMC certified per IEC 61326-1
Prod planner Menu

Technical Information

  • Size (w x d x h): 82.32″ x 38.07″ x 78.66″ (2091 mm x 867 mm x 1998 mm)
  • Minimum clearance (w x d x h): 121.65″ x 73.26″ x 88.58″ (3090 mm x 1861 mm x 2050 mm)
  • Weight: 660 kg (1455 lb)
  • Required minimum floor load rating: 200 kg/m² (40.9 lbf/ft²)
  • Power: 230 VAC ± 10%, 50 Hz, 1.6 kVA, 7 A in Europe (120 VAC ± 10%, 60 Hz, 3 kVA, 14 A in US)
  • Electrical safety: UL listing mark per IEC61010 and EMC certification per IEC61326-1

About the Portfolio

inclusiv is a comprehensive IV compounding portfolio of integrated technology, software, and service solutions designed to support your needs for sterile compounding from the design and building of your sterile compounding environment, to the preparation and verification of your products, through the ongoing management and optimization of your pharmacy operation.

For more information, visit www.grifolsinclusiv.com
